LCD-016N002L1 - 16 x 2 Character LCD

Vishay

📥 Download Datasheet

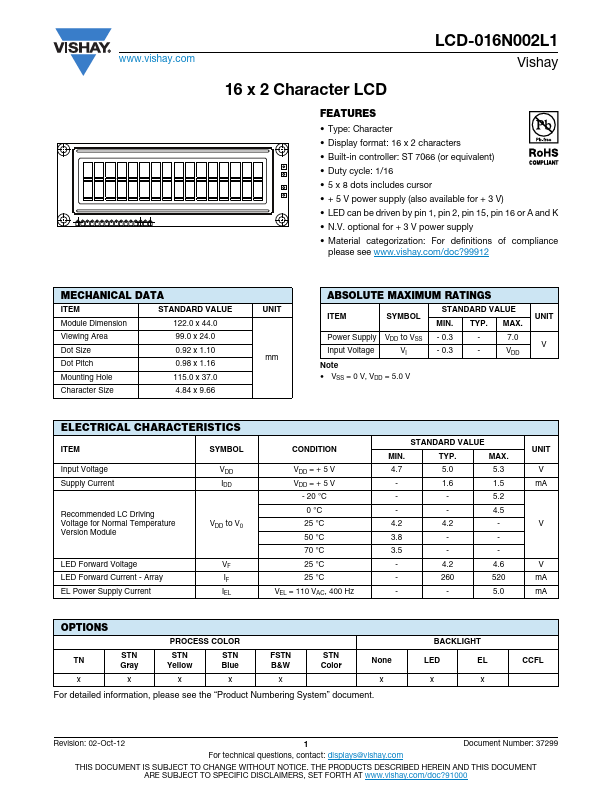

LCD-016N002L1 Datasheet Preview — Preview of LCD-016N002L1 PDF

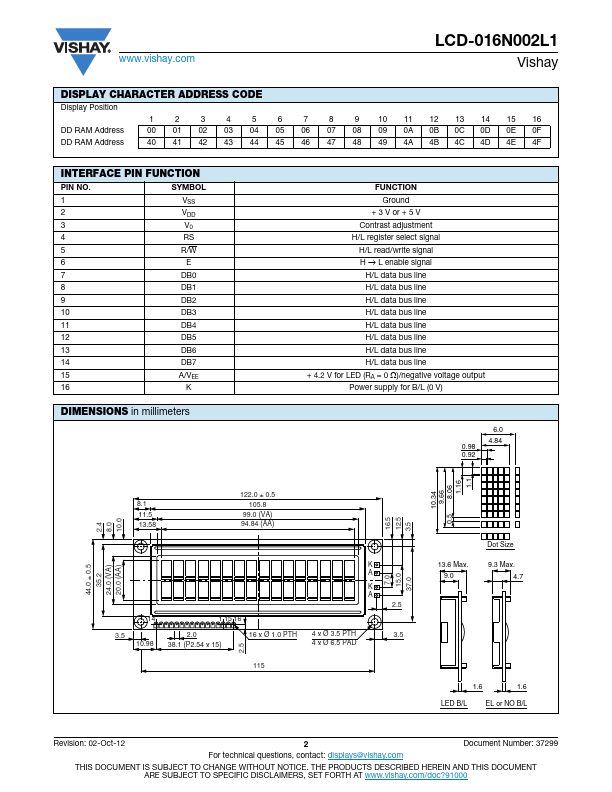

datasheet Preview Page 2

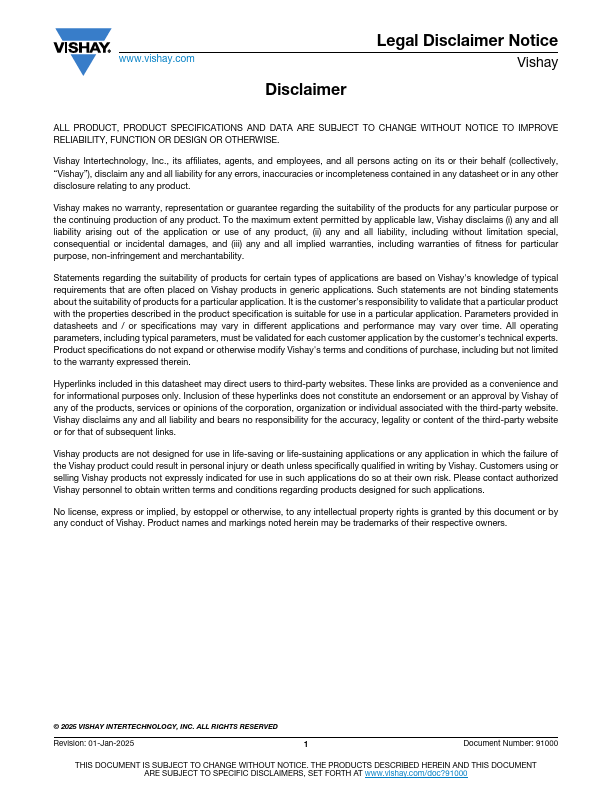

datasheet Preview Page 3

Datasheet Details

Part number	LCD-016N002L1
Manufacturer	Vishay
File Size	70.24 KB
Description	16 x 2 Character LCD
Datasheet	LCD-016N002L1-Vishay.pdf

LCD-016N002L1 Product details

Features

Type: Character.
Display format: 16 x 2 characters.
Built-in controller: ST 7066 (or equivalent).
Duty cycle: 1/16.
5 x 8 dots includes cursor.
+ 5 V power supply (also available for + 3 V).
LED can be driven by pin 1, pin 2, pin 15, pin 16 or A and K.
N. V. optional for + 3 V power supply.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
