LCD-016N002A - 16 x 2 Character LCD

Vishay

📥 Download Datasheet

LCD-016N002A Datasheet Preview — Preview of LCD-016N002A PDF

datasheet Preview Page 2

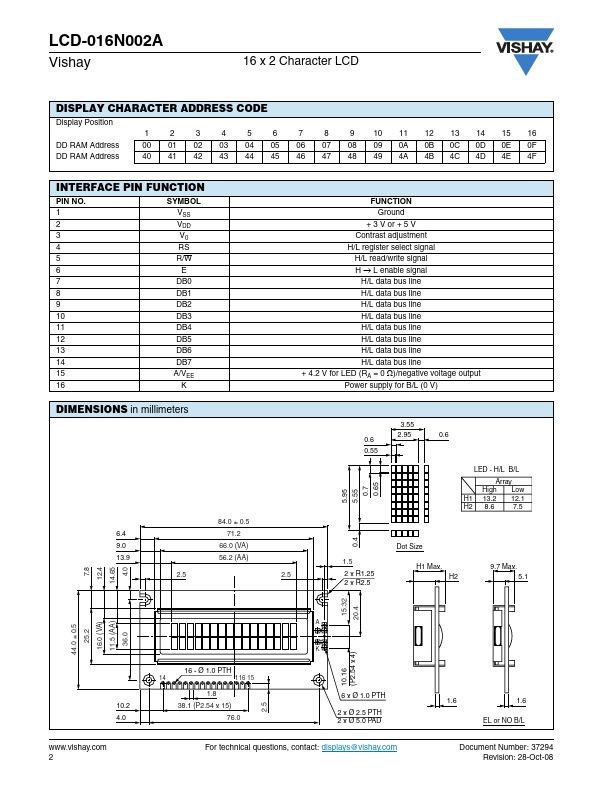

datasheet Preview Page 3

Datasheet Details

Part number	LCD-016N002A
Manufacturer	Vishay
File Size	69.25 KB
Description	16 x 2 Character LCD
Datasheet	LCD-016N002A-Vishay.pdf

LCD-016N002A Product details

Features

Type: Character.
Display format: 16 x 2 characters.
Built-in controller: KS 0066 (or equivalent).
Duty cycle: 1/16.
5 x 8 dots includes cursor.
+ 5 V power supply (also available for + 3 V).
LED can be driven by pin 1, pin 2, pin 15, pin 16 or A and K.
N. V. optional for + 3 V power supply.
Optional: Smaller character size (2.95 mm x 4.35 mm).
Compliant to RoHS directive 2002/95/EC.
