L1206 SMD Wraparound Ultra Low Value Thin Film Resistors

Vishay

L1206 Description

www.vishay.com L Vishay Sfernice SMD Wraparound Ultra Low Value Thin Film Resistors ADDITIONAL RESOURCES 3D 3D 3D Models With extremely low resista.

L1206 Features

* NiCr + Ta2O5 resistive layer
* Pre-soldered or gold terminations

L1206 Applications

* Alumina substrates for high power handling capability
* Resistance range: 0.1  to 9.99  Available Available
* TCR down to 50 ppm/°C Available
* Power rating: up to 2 W at +70 °C
* Withstand AEC-Q200 humidity test
* Material categorization: fo

📥 Download Datasheet

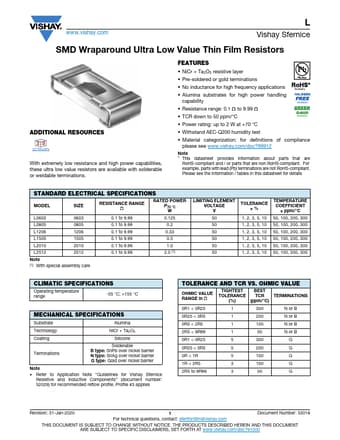

L1206 Datasheet Preview — Preview of L1206 PDF

Datasheet Details

Part number: L1206
Manufacturer: Vishay ↗
File Size: 144.26 KB
Datasheet: L1206-Vishay.pdf
Description: SMD Wraparound Ultra Low Value Thin Film Resistors
