IRLD014 - Power MOSFET

Vishay

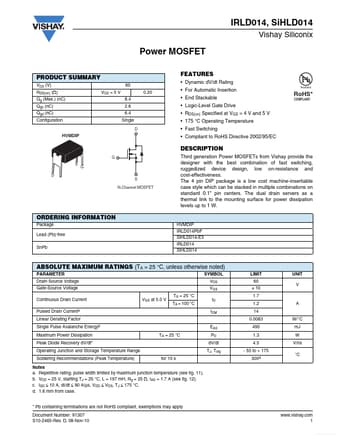

IRLD014 Datasheet Preview — Preview of IRLD014 PDF

Datasheet Details

Part number	IRLD014
Manufacturer	Vishay ↗
File Size	1.71 MB
Description	Power MOSFET
Datasheet	IRLD014-Vishay.pdf

IRLD014 Product details

Description

G S D S N-Channel MOSFET G Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.The 4 pin DIP package is a low cost machine-insertiable case style which can be stacked in multiple combinations on standard 0.1" pin centers.The dual drain servers as a thermal link to the mounting surface for power dissipation levels up to 1 W.ORDERING INFORMATION Package Lead (Pb)-free Sn

Features

60 0.20.
Dynamic dV/dt Rating.
For Automatic Insertion.
End Stackable.
Logic-Level Gate Drive.
RDS(on) Specified at VGS = 4 V and 5 V.
175 °C Operating Temperature.
Fast Switching.
Compliant to RoHS Directive 2002/95/EC Available RoHS.
