ILSB-0805 - Monolithic Chip Inductors

Vishay

📥 Download Datasheet

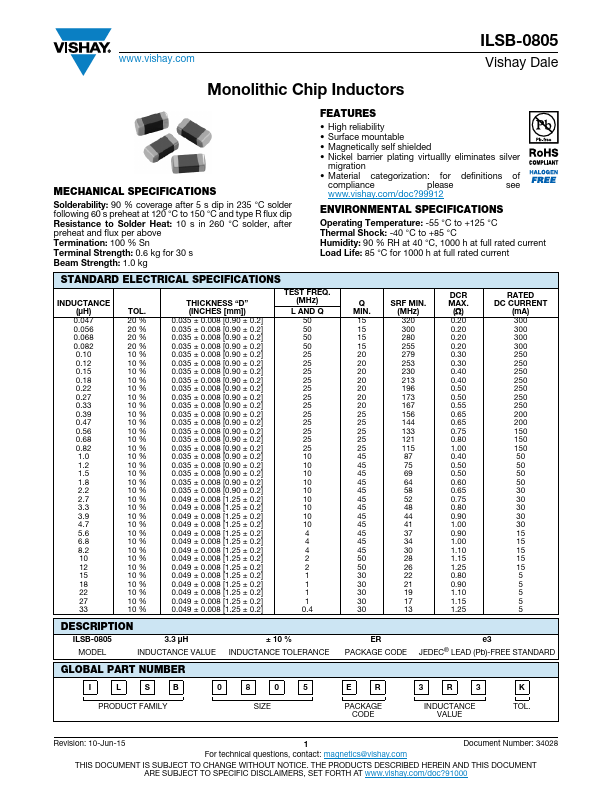

ILSB-0805 Datasheet Preview — Preview of ILSB-0805 PDF

Datasheet Details

Part number	ILSB-0805
Manufacturer	Vishay
File Size	86.82 KB
Description	Monolithic Chip Inductors
Datasheet	ILSB-0805-Vishay.pdf

ILSB-0805 Product details

Description

ILSB-0805 3.3 μH MODEL INDUCTANCE VALUE ± 10 % INDUCTANCE TOLERANCE ER e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I L S B 0 8 0 5 E R 3 R 3 K PRODUCT FAMILY SIZE PACKAGE CODE INDUCTANCE VALUE TOL.Revision: 10-Jun-15 1 Document Number: 34028 For technical questions, contact: magnetics@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH A

Features

High reliability.
Surface mountable.
Magnetically self shielded.
Nickel barrier plating virtuallly eliminates silver migration.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
