Description
ILS-2515 MODEL 10µH INDUCTANCE VALUE - 01 (4.7µH) - 02 (10µH)
± 20% INDUCTANCE TOLERANCE
SAP PART NUMBERING GUIDELINES (INTERNAL)
I L S 2 5
SIZE
1
5
R
K
1
0
0
M
TOL.0
2
PRODUCT FAMILY
PACKAGE CODE
INDUCTANCE VALUE
SERIES
See the end of this data book for conversion tables
www.vishay.com 64
For technical questions, contact Magnetics@vishay.com
Document Number 34095 Revision 10-Sep-02
ILS-2515

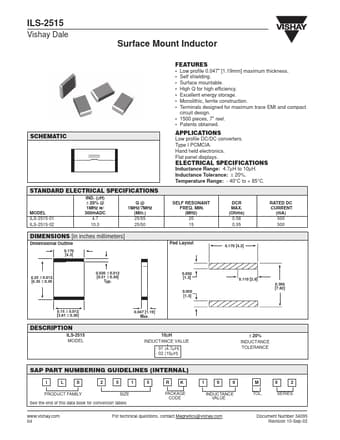

Surface Mount Inductor
PERFORMANCE GRAPHS
Inductance vs DC Bias
16 70 60 10µH
Vish
Features
- Low profile 0.047" [1.19mm] maximum thickness. Self shielding. Surface mountable. High Q for high efficiency. Excellent energy storage. Monolithic, ferrite construction. Terminals designed for maximum trace EMI and compact circuit design.
- 1500 pieces, 7" reel.
- Patents obtained.
ILS-2515_VishaySiliconix.pdf
