IHPT1411AFELR73ABA - Haptic Feedback Actuator

Vishay

The IHPT1411AFELR73ABA by Vishay is a Haptic Feedback Actuator. Below is the official datasheet preview.

📥 Download Datasheet

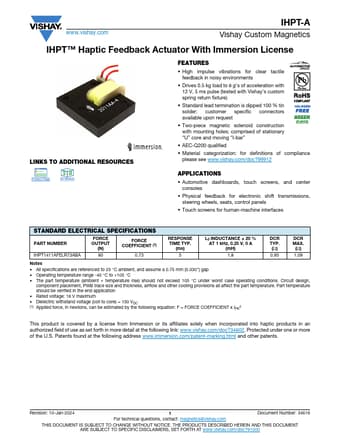

IHPT1411AFELR73ABA Haptic Feedback Actuator by Vishay - Datasheet Preview — Official preview page of the **IHPT1411AFELR73ABA** Haptic Feedback Actuator datasheet (Vishay).

Datasheet Details

Part number	IHPT1411AFELR73ABA
Manufacturer	Vishay
File Size	122.92 KB
Description	Haptic Feedback Actuator
Datasheet	IHPT1411AFELR73ABA-Vishay.pdf
Additional preview pages of the IHPT1411AFELR73ABA datasheet.

IHPT1411AFELR73ABA Product details

Description

IHPT-1411AF-A MODEL R73 FORCE COEFFICIENT TRAY PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD MATERIAL Core Wire Solder Laminated steel Copper, PU/PA insulated Hot dip tin SOLDER COMPOSITION Sn Cu 99.3 % 0.7 % DIMENSIONS in inches [millimeters] IHPT1411AFELR73ABA (80N) M3 through-hole typical 0.472 ± 0.010 (12.00 ± 0.25) 1.142 ± 0.010 (29.00 ± 0.25 0.898 ± 0.010 1.376 ± 0.010 (22.80 ± 0.25) (34.95 ± 0.25) 5.12 ± 0.39 (130 ± 10) typ.flying lead DYNAMIC STATIC 0.207 ± 0.010 (5.25 ±

Features

High impulse vibrations for clear tactile feedback in noisy environments.
Drives 0.5 kg load to 6 g’s of acceleration with 12 V, 5 ms pulse (tested with Vishay’s custom spring return fixture).
Standard lead termination is dipped 100 % tin solder; customer specific connectors available upon request.
Two-piece magnetic solenoid construction with mounting holes; comprised of stationary “U” core and moving “I-bar”.
AEC-Q200 qualified.
Material c.
