IHPT1411AFELR73AB0, IHPT1207AGELR39AB0 - Haptic Feedback Actuator

Vishay

📥 Download Datasheet

IHPT1411AFELR73AB0 Datasheet Preview — This datasheet PDF includes multiple part numbers: IHPT1411AFELR73AB0, IHPT1207AGELR39AB0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IHPT1411AFELR73AB0, IHPT1207AGELR39AB0
Manufacturer	Vishay
File Size	185.64 KB
Description	Haptic Feedback Actuator
Datasheet	IHPT1207AGELR39AB0-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: IHPT1411AFELR73AB0, IHPT1207AGELR39AB0. Please refer to the document for exact specifications by model.

IHPT1411AFELR73AB0 Product details

Description

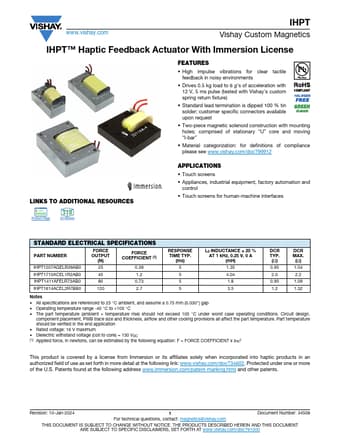

IHPT-1411AF MODEL R73 FORCE COEFFICIENT TRAY PACKAGE CODE e3 JEDEC® LEAD (Pb)-FREE STANDARD MATERIAL Core Wire Solder Laminated steel Copper, PU/PA insulated Hot dip tin DIMENSIONS in inches [millimeters] IHPT1207AGELR39AB0 (25N) SOLDER COMPOSITION Sn Cu 99.3 % 0.7 % 0.167 ± 0.005 [4.25 ± 0.13] 0.68 ± 0.01 [17.28 ± 0.25] 1.222 max.[31.05 max.] 0.080 ± 0.010 [2.03 ± 0.25] [ØØ02..02859±±0.0.103]05 5.12 ± 0.39 [130 ± 10] typ.flying lead DYNAMIC 0.128 ± 0.010 [3.25 ± 0.25] 0.443 ± 0.0

Features

High impulse vibrations for clear tactile feedback in noisy environments.
Drives 0.5 kg load to 6 g’s of acceleration with 12 V, 5 ms pulse (tested with Vishay’s custom spring return fixture).
Standard lead termination is dipped 100 % tin solder; customer specific connectors available upon request.
Two-piece magnetic solenoid construction with mounting holes; comprised of stationary “U” core and moving “I-bar”.
Material categorization: for definition.
