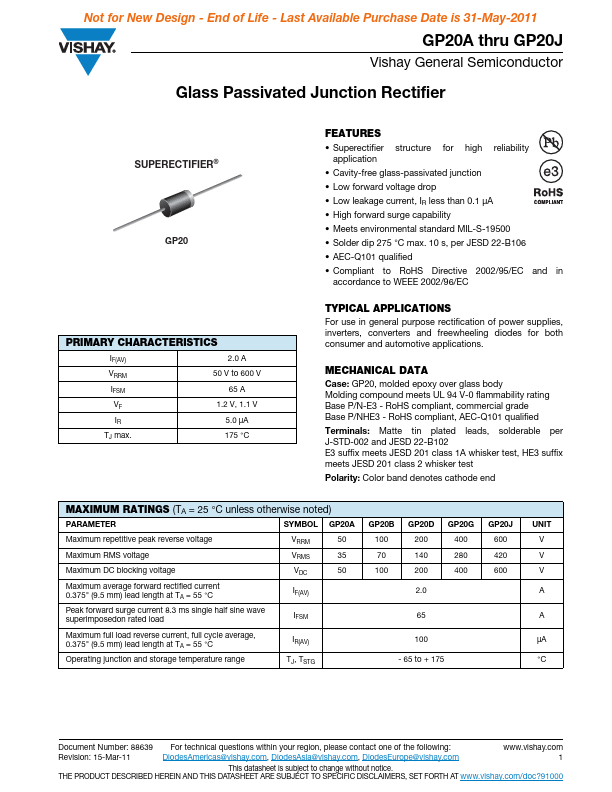

Datasheet Specifications
- Part number
- GP20A
- Manufacturer
- Vishay ↗
- File Size
- 75.40 KB
- Datasheet
- GP20A-Vishay.pdf
- Description
- Glass Passivated Junction Rectifier
Description
Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011 GP20A thru GP20J Vishay General Semiconductor Glass Passivated Junction.
Applications
* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for both consumer and automotive applications. MECHANICAL DATA Case: GP20, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercGP20A Distributors
