G20N50C - Power MOSFET

Datasheet Summary

Features

Low figure-of-merit Ron x Qg.
100 % avalanche tested.
High peak current capability.
dv/dt ruggedness.
Improved Trr/Qrr.
Improved gate charge Available.
High power dissipations capability.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

Vishay

📥 Download Datasheet

Datasheet Details

Part number	G20N50C
Manufacturer	Vishay
File Size	214.03 KB
Description	Power MOSFET
Datasheet	G20N50C Datasheet
Additional preview pages of the G20N50C datasheet.

📁 Similar Datasheet

G20N100D2 - HGTG20N100D2 (Intersil Corporation)
G20N120 - HGTG20N120 (ETC)
G20N60B3 - N-Channel IGBT (Intersil Corporation)
G20N60B3D - 40A / 600V / UFS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode (Fairchild)
G20N60C3 - N-Channel IGBT (Fairchild Semiconductor)
G20N60C3D - N-Channel IGBT (Intersil Corporation)
G20N60HS - High Speed IGBT (Infineon)
G20-40i - Rectifier (AEG)
G2000HF250 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
G2000HF450 - Anode Shorted Gate Turn-Off Thyristor (IXYS)

Other Datasheets by Vishay

G200 - Axial Vitreous Leaded Wirewound Resistors
G202 - Axial Vitreous Leaded Wirewound Resistors
G204 - Axial Vitreous Leaded Wirewound Resistors
G206 - Axial Vitreous Leaded Wirewound Resistors
G207 - Axial Vitreous Leaded Wirewound Resistors

Full PDF Text Transcription

Click to expand full text

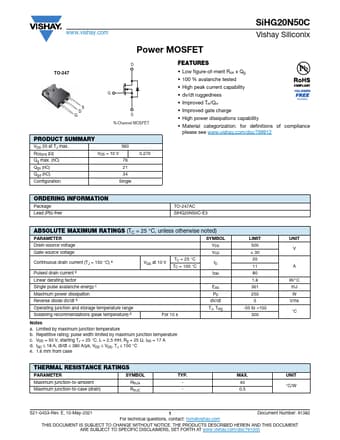

www.vishay.com SiHG20N50C Vishay Siliconix Power MOSFET D TO-247 S D G G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) at TJ max. RDS(on) (Ω) Qg max. (nC) Qgs (nC) 560 VGS = 10 V 76 21 Qgd (nC) Configuration 34 Single 0.270 FEATURES • Low figure-of-merit Ron x Qg • 100 % avalanche tested • High peak current capability • dv/dt ruggedness • Improved Trr/Qrr • Improved gate charge Available • High power dissipations capability • Material categorization: for definitions of compliance please see www.vishay.
