BA782 Band Switching Diodes

BA782 Description

www.vishay.com BA782, BA783 Vishay Semiconductors Band Switching Diodes MECHANICAL DATA Case: SOD-123 Weight: approx.10.3 mg Packaging codes/optio.
For electric bandswitching in radio and TV tuners in the frequency range of (50 to 1000) MHz.

BA782 Features

* Silicon epitaxial planar diode switches
* AEC-Q101 qualified
* Base P/N-E3 - RoHS-compliant, commercial grade
* Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 DES

📥 Download Datasheet

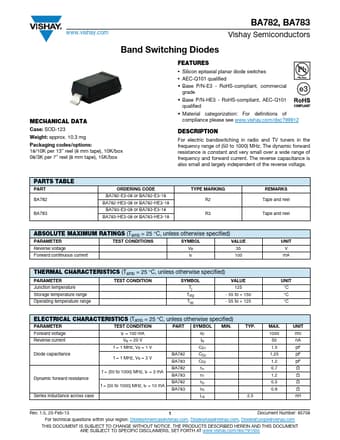

Preview of BA782 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA782
Manufacturer
Vishay ↗
File Size
69.96 KB
Datasheet
BA782-Vishay.pdf
Description
Band Switching Diodes
