BA782-G Band Switching Diodes

BA782-G Description

www.vishay.com BA782-G, BA783-G Vishay Semiconductors Band Switching Diodes MECHANICAL DATA Case: SOD-123 Weight: approx.9.4 mg Packaging codes/op.
For electric bandswitching in radio and TV tuners in the frequency range of (50 to 1000) MHz.

BA782-G Features

* Silicon epitaxial planar diode switches
* AEC-Q101 qualified
* Base P/N-G3 - green, commercial grade
* Base P/N-HG3 - green, AEC-Q101 qualified

📥 Download Datasheet

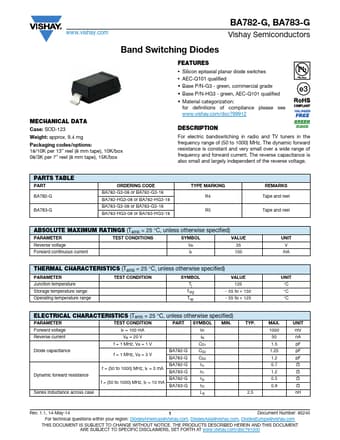

Preview of BA782-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BA782-G
Manufacturer
Vishay ↗
File Size
72.70 KB
Datasheet
BA782-G-Vishay.pdf
Description
Band Switching Diodes
