S822TRW - Silicon NPN Planar RF Transistor

Vishay Telefunken

Datasheet Details

Part number	S822TRW
Manufacturer	Vishay ↗ Telefunken
File Size	146.70 KB
Description	Silicon NPN Planar RF Transistor
Datasheet	S822TRW_VishayTelefunken.pdf

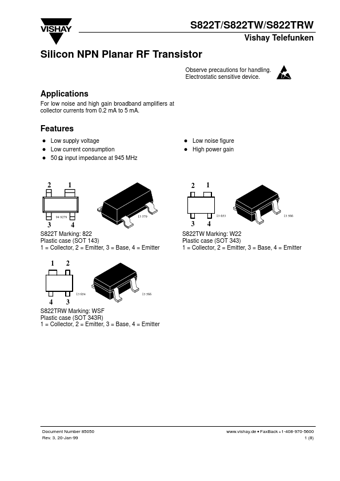

D Low supply voltage D Low current consumption D 50 W input impedance at 945 MHz D Low noise figure D High power gain 2 1 2 1 94 9279 13 579 13 653 13 566 3 4 3 4 S822T Marking: 822 Plastic case (SOT 143) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter S822TW Marking: W22 Plastic case (SOT 343) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter 1 2 13 654 13 566 4 3 S822TRW Marking: WSF Plastic case (SOT 343R) 1 = Collector, 2 = Emitter, 3 = Base, 4 = Emitter Document Numb.
