BA1282 Silicon Planar Diodes

BA1282 Description

BA1282.BA1283 Vishay Telefunken Silicon Planar Diodes .

BA1282 Applications

* Band switching in VHF
* tuners Absolute Maximum Ratings Tj = 25_C Parameter Reverse voltage Forward current Junction temperature Storage temperature range Test Conditions Type Symbol VR IF Tj Tstg Value 35 100 150
* 55+150 Unit V mA °C °C Maximum Thermal Resistance Tj = 25_C Parameter

📥 Download Datasheet

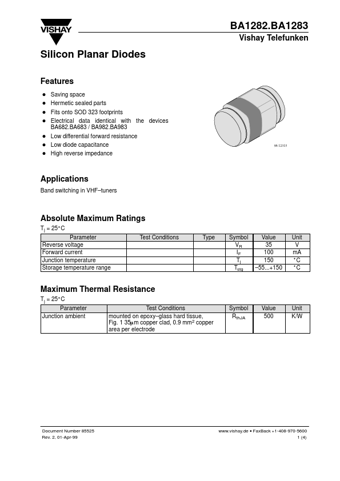

Preview of BA1282 PDF
datasheet Preview Page 2 datasheet Preview Page 3
