BA12003DF-Z Darlington Transistor Array

BA12003DF-Z Description

Datasheet 7 Circuits Darlington Transistor Array BA12003DF-Z BA12004DF-Z General .
BA12003DF-Z, BA12004DF-Z are darlington transistor array consist of 7circuits, input resistor to limit base current and output surge absorption clamp.

BA12003DF-Z Features

* Built-in 7 circuits
* High output break down voltage
* High DC output current gain
* Built-in input resistor to limit base current

BA12003DF-Z Applications

* Motor Drivers
* LED Drivers
* Solenoid Drivers
* Low Side Switch Key Specifications
* Output break down voltage： VCE=60V(max)
* Output current： Io=500mA/ch(max)
* Operating supply voltage range： -0.5V to +30V
* Operating temperature range： -40°C to +85°C

📥 Download Datasheet

Preview of BA12003DF-Z PDF

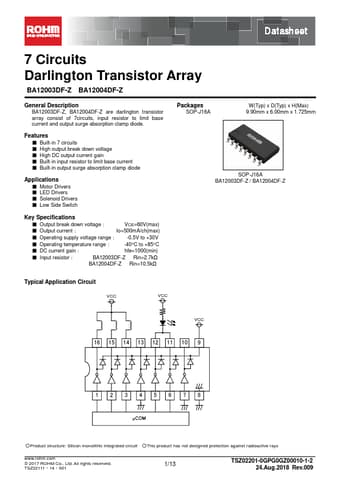

datasheet Preview Page 2 datasheet Preview Page 3
