SI3424DV N-Channel 30-V (D-S) MOSFET

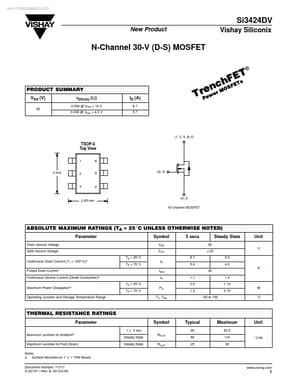

www.DataSheet4U.com Si3424DV New Product Vishay Siliconix N-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 30 rDS(on) (W) 0.028 @ VGS = 10 V 0.038 @ VGS = 4.5 V ID (A) 6.7 5.7 (1, 2, 5, 6) D TSOP-6 Top View 1 6 (3) G 3 mm 2 5 3 4 (4) S N-Channel MOSFET 2.85 mm ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150_C)a Pulsed Drain Current Continuous Source Current (Diode Conduction)a Maxi.

SI3424DV Datasheet (68.43 KB)
