SB330S, SB320S Schottky Barrier Rectifier

SB330S Description

www.DataSheet.co.kr New Product SB320S thru SB360S Vishay General Semiconductor Schottky Barrier Rectifier .

SB330S Features

* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High frequency operation
* 20 kV ESD capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS directive 2002/95/EC and in accordance to

SB330S Applications

* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 3.0 A 20 V to 60 V 100 A 0.50 V, 0.70 V 125 °C, 150 °C For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-204AC (DO-15) Molding compound meets UL 94 V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB330S, SB320S. Please refer to the document for exact specifications by model.

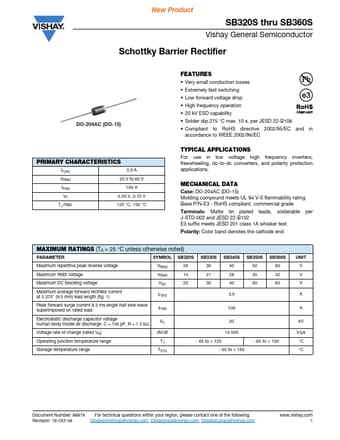

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB330S, SB320S
Manufacturer
Vishay ↗ Siliconix
File Size
129.31 KB
Datasheet
SB320S_VishaySiliconix.pdf
Description
Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SB330S, SB320S.
Please refer to the document for exact specifications by model.
