SB320A Schottky Barrier Rectifier

SB320A Description

www.DataSheet.co.kr Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011 SB320A thru SB360A Vishay General Semiconductor .

SB320A Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High frequency operation
* 20 kV ESD capability DO-201AD
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* C

SB320A Applications

* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 3.0 A 20 V to 60 V 80 A 0.50 V, 0.70 V 150 °C For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-201AD Molding compound meets UL 94 V-0 flammability r

📥 Download Datasheet

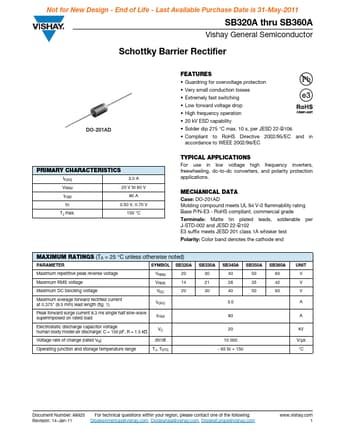

Preview of SB320A PDF
datasheet Preview Page 2 datasheet Preview Page 3
