MCT274 - Optocoupler / Phototransistor Output / With Base Connection

Vishay Siliconix

The MCT274 by Vishay Siliconix is a Optocoupler / Phototransistor Output / With Base Connection. Below is the official datasheet preview.

Datasheet Details

Part number	MCT274
Manufacturer	Vishay Siliconix
File Size	209.65 KB
Description	Optocoupler / Phototransistor Output / With Base Connection
Datasheet	MCT274_VishaySiliconix.pdf

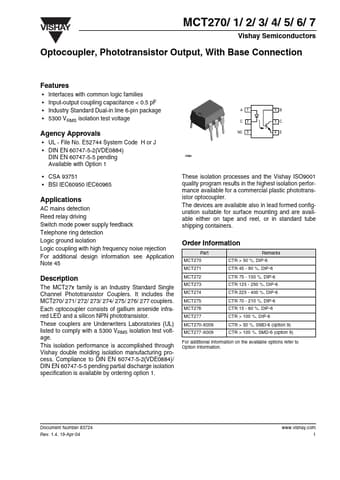

Additional preview pages of the MCT274 datasheet.

The MCT27x family is an Industry Standard Single Channel Phototransistor Couplers.

Interfaces with common logic families Input-output coupling capacitance < 0.5 pF Industry Standard Dual-in line 6-pin package 5300 VRMS isolation test voltage A C NC 1 2 3 6 B 5 C 4 E Agency Approvals.
UL - File No. E52744 System Code H or J.
DIN EN 60747-5-2(VDE0884) DIN EN 60747-5-5 pending Available with Option 1.
CSA 93751.
BSI IEC60950 IEC60965 i179004.
