MCT2201X, MCT2200 - OPTICALLY COUPLED ISOLATOR

ISOCOM COMPONENTS

The MCT2201X by ISOCOM COMPONENTS is a OPTICALLY COUPLED ISOLATOR. Below is the official datasheet preview.

📥 Download Datasheet

MCT2201X OPTICALLY COUPLED ISOLATOR by ISOCOM COMPONENTS - Datasheet Preview — Official preview page of the **MCT2201X** OPTICALLY COUPLED ISOLATOR datasheet (ISOCOM COMPONENTS).

Datasheet Details

Part number	MCT2201X, MCT2200
Manufacturer	ISOCOM COMPONENTS
File Size	79.49 KB
Description	OPTICALLY COUPLED ISOLATOR
Datasheet	MCT2200_ISOCOMCOMPONENTS.pdf
Note	This datasheet PDF includes multiple part numbers: MCT2201X, MCT2200. Please refer to the document for exact specifications by model.

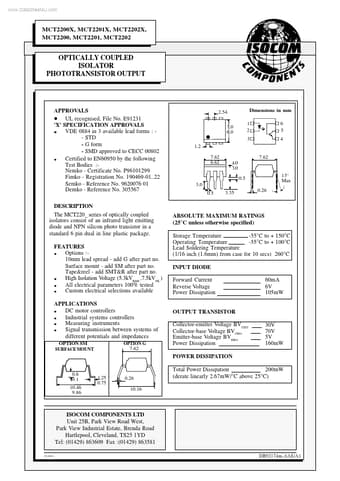

Additional preview pages of the MCT2201X datasheet.

MCT2201X Product details

Description

The MCT220_ series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package.

Features

Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available l 2.54 7.0 6.0 1.2 7.62 6.62 Dimensions in mm 1 2 3 6 5 4 7.62 4.0 3.0 0.5 13° Max 0.26 3.0 0.5 3.35.
