MCT2E, MCT2 - OPTICALLY COUPLED ISOLATOR

ISOCOM COMPONENTS

The MCT2E by ISOCOM COMPONENTS is a OPTICALLY COUPLED ISOLATOR. Below is the official datasheet preview.

📥 Download Datasheet

MCT2E OPTICALLY COUPLED ISOLATOR by ISOCOM COMPONENTS - Datasheet Preview — Official preview page of the **MCT2E** OPTICALLY COUPLED ISOLATOR datasheet (ISOCOM COMPONENTS).

Datasheet Details

Part number	MCT2E, MCT2
Manufacturer	ISOCOM COMPONENTS
File Size	85.88 KB
Description	OPTICALLY COUPLED ISOLATOR
Datasheet	MCT2_ISOCOMCOMPONENTS.pdf
Note	This datasheet PDF includes multiple part numbers: MCT2E, MCT2. Please refer to the document for exact specifications by model.

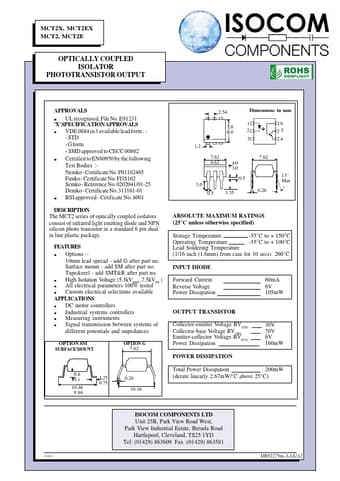

Additional preview pages of the MCT2E datasheet.

MCT2E Product details

Description

The MCT2 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package.

Features

l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l All electrical parameters 100% tested l Custom electrical selections available.
