GS1117CM-3.3 - 800mA Low Dropout Positive Adjustable Regulator

Product Overview

Vishay Siliconix

📥 Download Datasheet

GS1117CM-3.3 800mA Low Dropout Positive Adjustable Regulator by Vishay Siliconix - Datasheet Preview — Datasheet preview – GS1117CM-3.3

Datasheet Details

Part number	GS1117CM-3.3
Manufacturer	Vishay Siliconix
File Size	81.90 KB
Description	800mA Low Dropout Positive Adjustable Regulator
Datasheet	GS1117CM-3.3 Datasheet

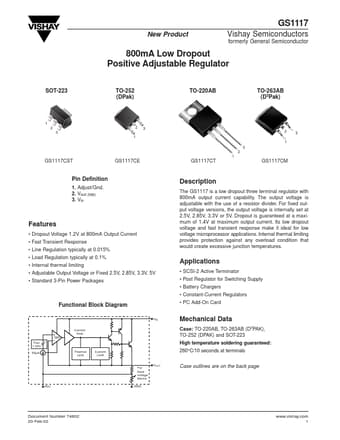

Additional preview pages of the GS1117CM-3.3 datasheet.

Product details

Description

The GS1117 is a low dropout three terminal regulator with 800mA output current capability.

Features

Dropout Voltage 1.2V at 800mA Output Current.
Fast Transient Response.
Line Regulation typically at 0.015%.
Load Regulation typically at 0.1%.
Internal thermal limiting.
Adjustable Output Voltage or Fixed 2.5V, 2.85V, 3.3V, 5V.
Standard 3-Pin Power Packages.
