GS1117CE - 800mA Low Dropout Positive Adjustable Regulator

Product Overview

Vishay Siliconix

📥 Download Datasheet

GS1117CE 800mA Low Dropout Positive Adjustable Regulator by Vishay Siliconix - Datasheet Preview — Datasheet preview – GS1117CE

Datasheet Details

Part number	GS1117CE
Manufacturer	Vishay Siliconix
File Size	81.90 KB
Description	800mA Low Dropout Positive Adjustable Regulator
Datasheet	GS1117CE Datasheet

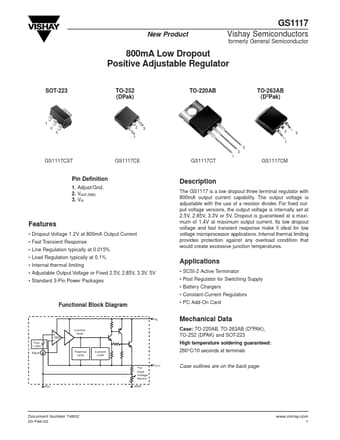

Additional preview pages of the GS1117CE datasheet.

Product details

Description

The GS1117 is a low dropout three terminal regulator with 800mA output current capability.

Features

Dropout Voltage 1.2V at 800mA Output Current.
Fast Transient Response.
Line Regulation typically at 0.015%.
Load Regulation typically at 0.1%.
Internal thermal limiting.
Adjustable Output Voltage or Fixed 2.5V, 2.85V, 3.3V, 5V.
Standard 3-Pin Power Packages.
