DG4052A, DG4051A - Multiplexers

Vishay Siliconix

📥 Download Datasheet

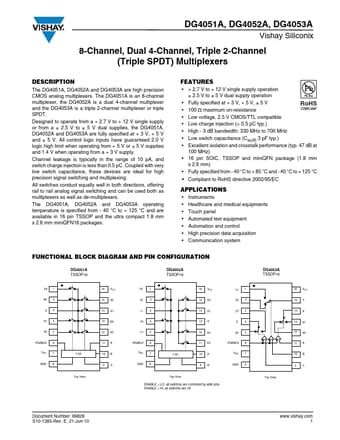

DG4052A Datasheet Preview — This datasheet PDF includes multiple part numbers: DG4052A, DG4051A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DG4052A, DG4051A
Manufacturer	Vishay Siliconix
File Size	294.16 KB
Description	Multiplexers
Datasheet	DG4051A_VishaySiliconix.pdf
Note	This datasheet PDF includes multiple part numbers: DG4052A, DG4051A. Please refer to the document for exact specifications by model.

DG4052A Product details

Description

The DG4051A, DG4052A and DG4053A are high precision CMOS analog multiplexers.

Features

+ 2.7 V to + 12 V single supply operation ± 2.5 V to ± 5 V dual supply operation.
Fully specified at + 3 V, + 5 V, ± 5 V RoHS.
