DG405 - Improved / Dual / High-Speed Analog Switches

Download the DG405 datasheet PDF. This datasheet also covers the DG401 variant, as both devices belong to the same improved / dual / high-speed analog switches family and are provided as variant models within a single manufacturer datasheet.

Description

______________________New

Features

  • Maxim's redesigned DG401/DG403/DG405 analog switches now feature guaranteed low on-resistance matching between switches (2Ω max) and guaranteed on-resistance flatness over the signal range (3Ω max). These low on-resistance switches (20Ω typ) conduct equally well in either direction and are guaranteed to have low charge injection (15pC max). The new design offers lower off leakage current over temperature (less than 5nA at +85°C). The DG401/DG403/DG405 are dual, high-speed switches. The single-p.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DG401_MaximIntegratedProducts.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DG405 Monolithic CMOS Analog Switches Intersil Corporation
DG405 High-Speed CMOS Analog Switches Vishay
DG4051A Multiplexers Vishay Siliconix
DG4051E Analog Multiplexers Vishay
DG4052A Multiplexers Vishay Siliconix

Other Datasheets by Maxim Integrated (Analog Devices)

Part Number Description
DG403 Improved / Dual / High-Speed Analog Switches
DG411 SPST Analog Switches
DG411F SPST Analog Switches
DG412 SPST Analog Switches
DG412F SPST Analog Switches

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

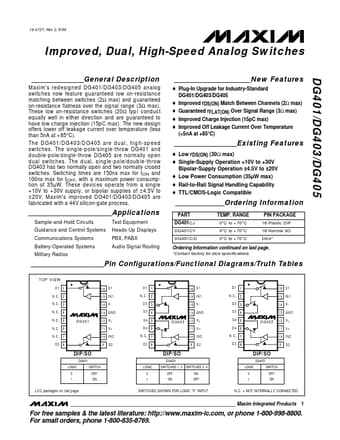

19-4727; Rev 2; 6/99 Improved, Dual, High-Speed Analog Switches DG401/DG403/DG405 _______________General Description ______________________New Features Maxim's redesigned DG401/DG403/DG405 analog switches now feature guaranteed low on-resistance matching between switches (2Ω max) and guaranteed on-resistance flatness over the signal range (3Ω max). These low on-resistance switches (20Ω typ) conduct equally well in either direction and are guaranteed to have low charge injection (15pC max). The new design offers lower off leakage current over temperature (less than 5nA at +85°C). The DG401/DG403/DG405 are dual, high-speed switches. The single-pole/single-throw DG401 and double-pole/single-throw DG405 are normally open dual switches.
