VK1056Q - LCD Driver

VinKa

The VK1056Q by VinKa is a LCD Driver. Below is the official datasheet preview.

📥 Download Datasheet

VK1056Q LCD Driver by VinKa - Datasheet Preview — Official preview page of the **VK1056Q** LCD Driver datasheet (VinKa).

Datasheet Details

Part number	VK1056Q
Manufacturer	VinKa
File Size	3.74 MB
Description	LCD Driver
Datasheet	VK1056Q-VinKa.pdf
Additional preview pages of the VK1056Q datasheet.

VK1056Q Product details

Description

VK1056Q 14×4 LCD DRIVER VK1056Q is a RAM Mapping 14x4 LCD Driver，It can support LCD screens with a maximum of 56 pattern(14SEGx4COM),it is also supports LCD screens of 2COM or 3COM.Only 3 lines are required to communication interface with the VK1056Q, it is used to configure display parameters and transfer display data, and can also enter the standby mode through Power down command.February 2020 Rev.1.3 2/16 www.szvinka.com 2 Pinouts and pin description 2.1 VK1056Q QFNL24 Pin Assignment

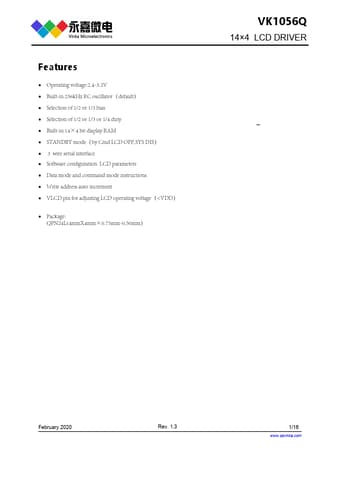

Features

Operating voltage:2.4-5.2V.
Built-in 256kHz RC oscillator（default）.
Selection of 1/2 or 1/3 bias.
Selection of 1/2 or 1/3 or 1/4 duty.
Built-in 14×4 bit display RAM.
