VK1088B - 22 x 4 LCD Driver

The VK1088B by Yongjia is a 22 x 4 LCD Driver. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the VK1088B 22 x 4 LCD Driver datasheet (Yongjia).

Datasheet Details

Part number VK1088B
Manufacturer Yongjia
File Size 3.81 MB
Description 22 x 4 LCD Driver
Datasheet download datasheet VK1088B-Yongjia.pdf

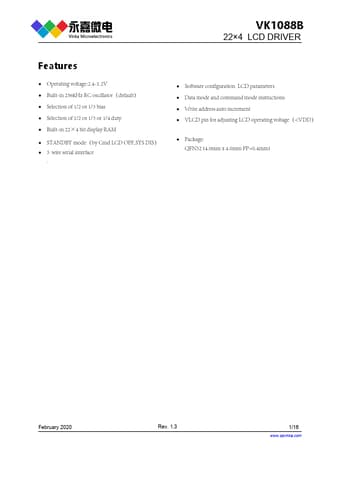

Additional preview pages of the VK1088B datasheet.

VK1088B Product details

Description

VK1088B 22×4 LCD DRIVER VK1088B is a RAM Mapping 32x4 LCD Driver，It can support LCD screens with a maximum of 128 pattern(32SEGx4COM), it is also supports LCD screens of 2COM or 3COM.Only 3 lines are required to communication interface with the VK1088B,it is used to configure display parameters and transfer display data, and can also enter the standby mode through Power down command.February 2020 Rev.1.3 2/16 www.szvinka.com 2 Pinouts and pin description 2.1 VK1088B QFN32 Pin Assignment

Features
