BAS16WS - Silicon Epitaxial Planar Switching Diode

The BAS16WS by Viitor is a Silicon Epitaxial Planar Switching Diode. Below is the official datasheet preview.

📥 Download Datasheet

BAS16WS Silicon Epitaxial Planar Switching Diode by Viitor - Datasheet Preview — Official preview page of the BAS16WS Silicon Epitaxial Planar Switching Diode datasheet (Viitor).

Datasheet Details

Part number	BAS16WS
Manufacturer	Viitor
File Size	471.09 KB
Description	Silicon Epitaxial Planar Switching Diode
Datasheet	BAS16WS-Viitor.pdf
Additional preview pages of the BAS16WS datasheet.

BAS16WS Product details

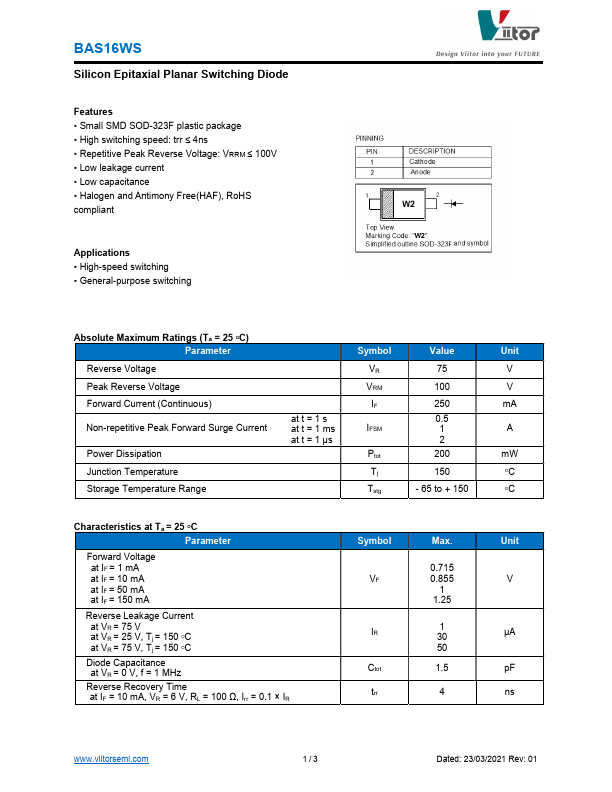

Features

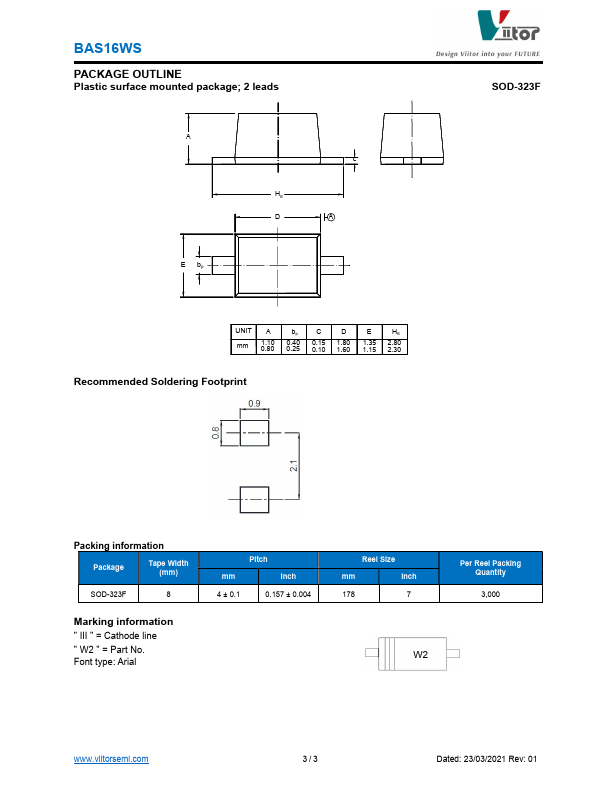

Small SMD SOD-323F plastic package.
High switching speed: trr ≤ 4ns.
Repetitive Peak Reverse Voltage: VRRM ≤ 100V.
Low leakage current.
Low capacitance.
Halogen and Antimony Free(HAF), RoHS compliant.
