BAS16WT1, Silicon Switching Diode

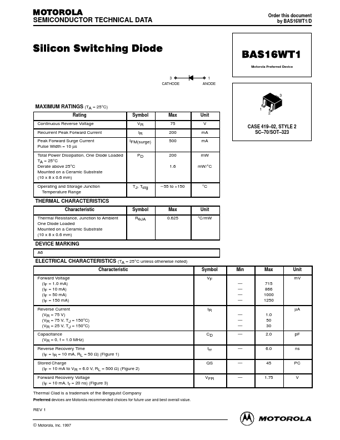

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BAS16WT1/D Silicon Switching Diode 3 CATHODE 1 ANODE BAS16WT1 Motorola Preferred Devi

Applications

* Surface mount board layout is a critical portion of the total design.
The footprint for the semiconductor packages must be the correct size to insure proper solder connection 0.025 0.65 interface between the board and the package.
With the correct pad geometry, the packages will self align when sub
