DCM3623T36G53C2M00, DCM3623x36G53C2yzz DC-DC Converter

Vicor

Description

DCM™ DC-DC Converter DCM3623x36G53C2yzz ®S C US C NRTL US Isolated, Regulated DC Converter .
The DCM Isolated, Regulated DC Converter is a DC-DC converter, operating from an unregulated, wide range input to generate an isolated 48.

📥 Download Datasheet

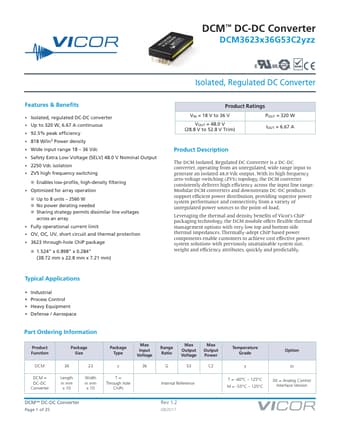

DCM3623T36G53C2M00 Datasheet Preview — This datasheet PDF includes multiple part numbers: DCM3623T36G53C2M00, DCM3623x36G53C2yzz. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DCM3623T36G53C2M00, DCM3623x36G53C2yzz
Manufacturer: Vicor
File Size: 3.71 MB
Datasheet: DCM3623x36G53C2yzz-VICOR.pdf
Description: DC-DC Converter
Note: This datasheet PDF includes multiple part numbers: DCM3623T36G53C2M00, DCM3623x36G53C2yzz.
Please refer to the document for exact specifications by model.

Features

* & Beneﬁts
* Isolated, regulated DC-DC converter
* Up to 320 W, 6.67 A continuous
* 92.5% peak efficiency
* 818 W/in3 Power density
* Wide input range 18
* 36 Vdc
* Safety Extra Low Voltage (SELV) 48.0 V Nominal Output
* 2250 Vdc isolati

Applications

* Industrial
* Process Control
* Heavy Equipment
* Defense / Aerospace Part Ordering Information Product Function DCM DCM = DC-DC Converter Package Size 36 Length in mm x 10 23 Width in mm x 10 Package Type x Max Input Voltage Range Ratio Max Output Voltage
