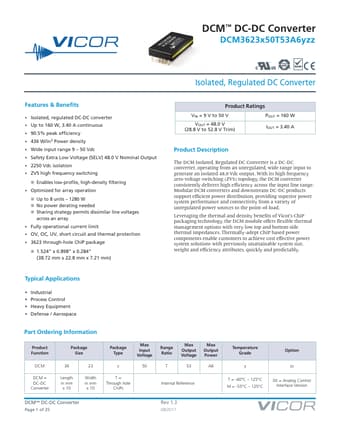

DCM™ DC-DC Converter
DCM3623x50T53A6yzz
S ®
C US C NRTL US
Isolated, Regulated DC Converter
Features & Benefits
• Isolated, regulated DC-DC converter • Up to 160 W, 3.40 A continuous • 90.5% peak efficiency • 436 W/in3 Power density • Wide input range 9 – 50 Vdc • Safety Extra Low Voltage (SELV) 48.0 V Nominal Output • 2250 Vdc isolation • ZVS high frequency switching
n Enables low-profile, high-density filtering • Optimized for array operation
n Up to 8 units – 1280 W n No power derating needed n Sharing strategy permits dissimilar line voltages
across an array • Fully operational current limit • OV, OC, UV, short circuit and thermal protection • 3623 through-hole ChiP package
n 1.524” x 0.898” x 0.284” (38.72 mm x 22.8 mm x 7.21 mm)
Product Ratings
VIN = 9 V to 50 V
VOUT = 48.0 V (28.
