VSE006N03MS - N-Channel Advanced Power MOSFET

Features

  • N-Channel，5V Logic Level Control.
  • Enhancement mode.
  • Very low on-resistance RDS(on) @ VGS=4.5 V.
  • Fast Switching.
  • 100% Avalanche Tested.
  • Pb-free lead plating; RoHS compliant VSE006N03MS 30V/58A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 5.4 mΩ 7.4 mΩ 58 A PDFN3333 Part ID VSE006N03MS Package Type PDFN3333 Marking 006N03M Tape and reel information 5000pcs/Reel Absolute aximum ratings, at T j=25 °C, unless other.

📥 Download Datasheet

Datasheet Details

Part number VSE006N03MS
Manufacturer Vanguard Semiconductor
File Size 582.19 KB
Description N-Channel Advanced Power MOSFET
Datasheet download datasheet VSE006N03MS Datasheet

📁 Similar Datasheet

Other Datasheets by Vanguard Semiconductor

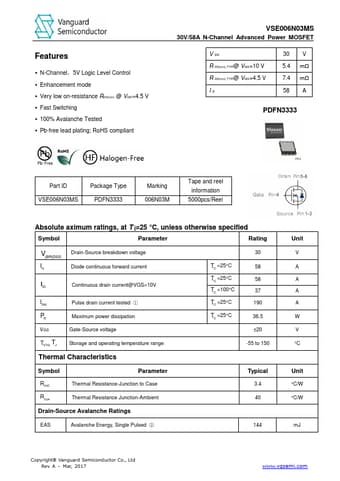

Full PDF Text Transcription

Click to expand full text
Features  N-Channel，5V Logic Level Control  Enhancement mode  Very low on-resistance RDS(on) @ VGS=4.5 V  Fast Switching  100% Avalanche Tested  Pb-free lead plating; RoHS compliant VSE006N03MS 30V/58A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 5.4 mΩ 7.
