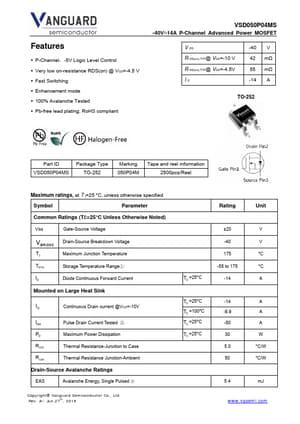

VSD050P04MS - P-Channel Advanced Power MOSFET

Features

  • P-Channel，-5V Logic Level Control.
  • Very low on-resistance RDS(on) @ VGS=-4.5 V.
  • Fast Switching.
  • Enhancement mode.
  • 100% Avalanche Tested.
  • Pb-free lead plating; RoHS compliant VSD050P04MS -40V/-14A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5V ID -40 V 42 mΩ 55 mΩ -14 A TO-252 Part ID Package Type VSD050P04MS TO-252 Marking Tape and reel information 050P04M 2500pcs/Reel Maximum ratings, at T j=25 °C, unless otherwise.

📥 Download Datasheet

Datasheet Details

Part number VSD050P04MS
Manufacturer Vanguard Semiconductor
File Size 364.89 KB
Description P-Channel Advanced Power MOSFET
Datasheet download datasheet VSD050P04MS Datasheet

📁 Similar Datasheet

Other Datasheets by Vanguard Semiconductor

Full PDF Text Transcription

Click to expand full text
Features  P-Channel，-5V Logic Level Control  Very low on-resistance RDS(on) @ VGS=-4.5 V  Fast Switching  Enhancement mode  100% Avalanche Tested  Pb-free lead plating; RoHS compliant VSD050P04MS -40V/-14A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.
