VS3508AS - P-Channel Advanced Power MOSFET

VS3508AS Description

.

VS3508AS Features

* P-Channel，-5V Logic Level Control
* Very low on-resistance RDS(on) @ VGS=-4.5 V
* Fast Switching
* Enhancement mode
* Pb-free lead plating; RoHS compliant VS3508AS -30V/-13A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5V ID -30 V 8.5 mΩ

📥 Download Datasheet

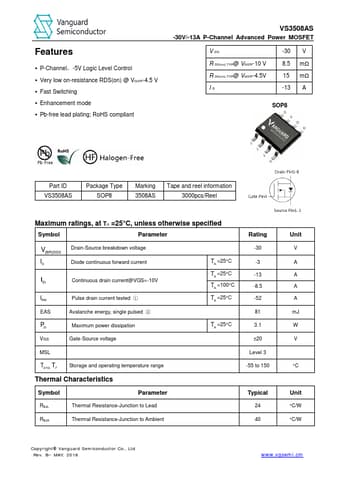

Preview of VS3508AS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3508AS
Manufacturer
Vanguard Semiconductor
File Size
590.64 KB
Datasheet
VS3508AS-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
