VS3508AE - P-Channel Advanced Power MOSFET

VS3508AE Description

.

VS3508AE Features

* P-Channel，-5V Logic Level Control
* Very low on-resistance RDS(on) @ VGS=-4.5 V
* Fast Switching
* Enhancement mode
* Pb-free lead plating; RoHS compliant VS3508AE -30V/-47A P-Channel Advanced Power MOSFET V DS -30 V R @ DS(on),TYP VGS=-10 V 8.5 mΩ R @ DS(on),TYP VGS=-4.5

📥 Download Datasheet

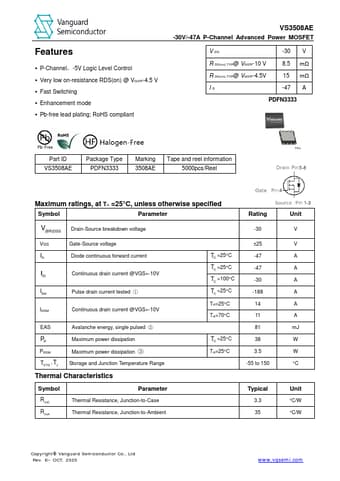

Preview of VS3508AE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3508AE
Manufacturer
Vanguard Semiconductor
File Size
424.87 KB
Datasheet
VS3508AE-VanguardSemiconductor.pdf
Description
P-Channel Advanced Power MOSFET
