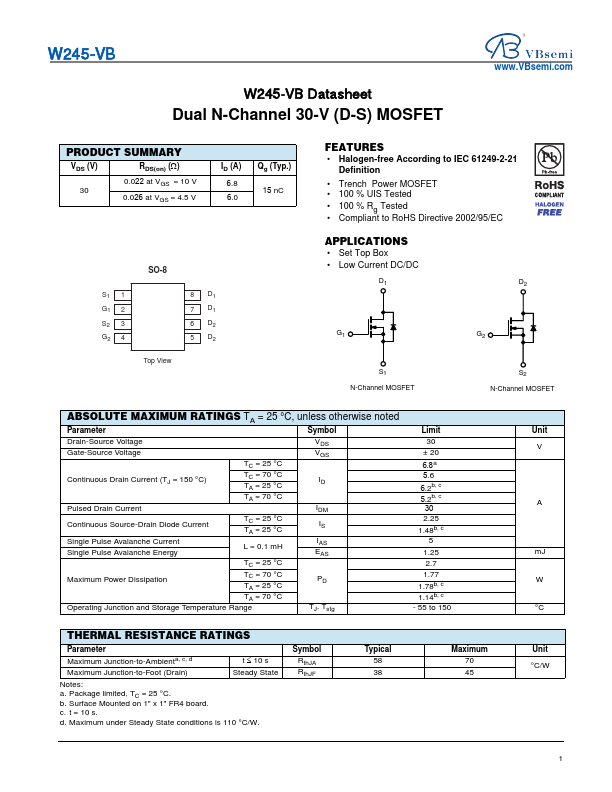

Part number:
W245
Manufacturer:
VBsemi
File Size:
216.79 KB
Description:
Dual n-channel 30v mosfet.
Datasheet Details
W245 Features
* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-C
Datasheet Details
W245
VBsemi
216.79 KB
Dual n-channel 30v mosfet.
W245 Distributor
