W241 Dual N-Channel 40V MOSFET

W241 Description

W241-VB W241-VB Datasheet Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.022 at VGS = 10 V 30 0.026 at VG.

W241 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

W241 Applications

* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 6.8a Continuous Drain

📥 Download Datasheet

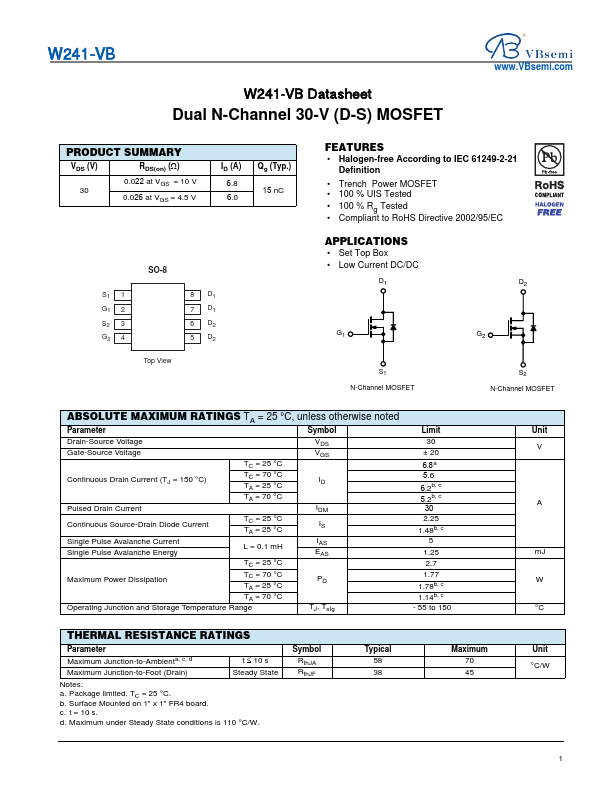

Preview of W241 PDF

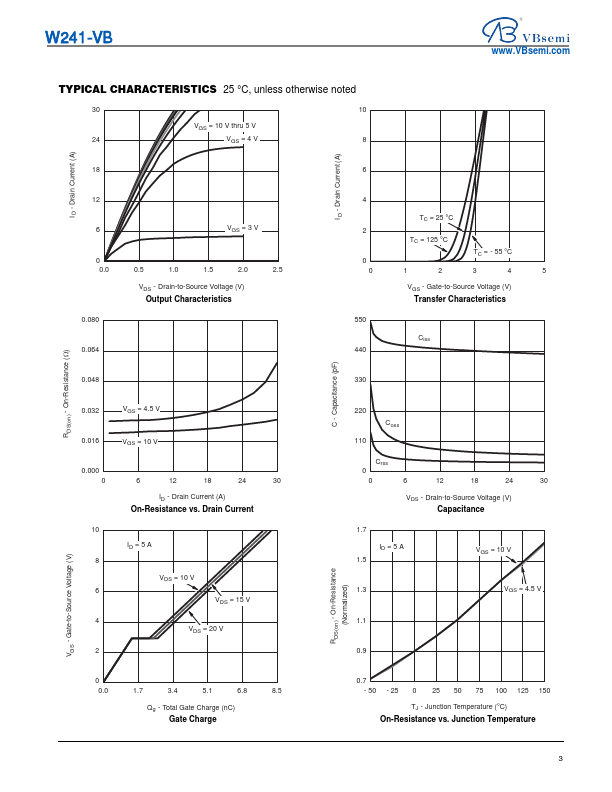

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
W241
Manufacturer
VBsemi
File Size
216.79 KB
Datasheet
W241-VBsemi.pdf
Description
Dual N-Channel 40V MOSFET
