VBM1803 N-Channel MOSFET

VBsemi

Description

VBM1803 www.VBsemi.com N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) MAX.80 0.0028 at VGS = 10 V 0.0030 at VGS = 7.5 V ID .

📥 Download Datasheet

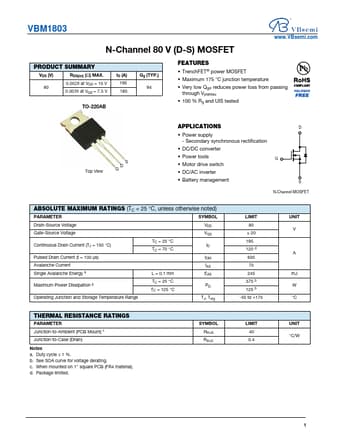

VBM1803 Datasheet Preview — Preview of VBM1803 PDF

Datasheet Specifications

Part number: VBM1803
Manufacturer: VBsemi
File Size: 695.97 KB
Datasheet: VBM1803-VBsemi.pdf
Description: N-Channel MOSFET

Features

* TrenchFET® power MOSFET
* Maximum 175 °C junction temperature
* Very low Qgd reduces power loss from passing through Vplateau

Applications

* D
* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools G
* Motor drive switch
* DC/AC inverter
* Battery management S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER
