STS2301 P-Channel 20V MOSFET

STS2301 Description

STS2301-VB STS2301-VB Datasheet P-Channel 20-V (D-S) MOSFET www.VBsemi.com MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () ID (A)a 0.060 at VGS = - .

STS2301 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

STS2301 Applications

* Load Switch
* PA Switch
* DC/DC Converters G1 S2 3D ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C ID TA =

📥 Download Datasheet

Preview of STS2301 PDF

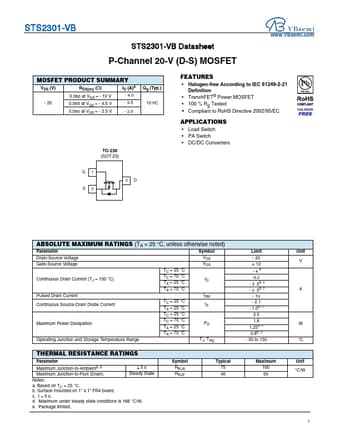

datasheet Preview Page 2 datasheet Preview Page 3
