STS2309A P-Channel MOSFET

STS2309A Description

STS2309A-VB STS2309A-VB Datasheet www.VBsemi.com P-Channel 20-V (D-S) MOSFET MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () ID (A)a 0.060 at VGS =.

STS2309A Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

STS2309A Applications

* Load Switch
* PA Switch
* DC/DC Converters G1 S2 3D ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C ID TA =

📥 Download Datasheet

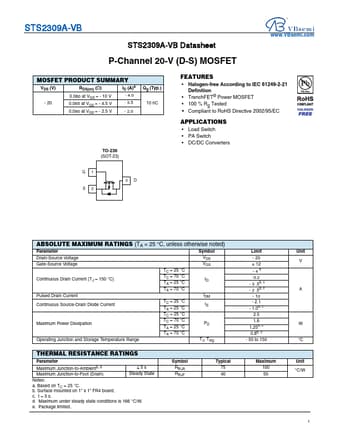

Preview of STS2309A PDF
