NCE40H12K - N-Channel MOSFET

Features

  • TrenchFET® Power MOSFET.
  • 100 % Rg and UIS Tested.

📥 Download Datasheet

Datasheet Details

Part number NCE40H12K
Manufacturer VBsemi
File Size 246.04 KB
Description N-Channel MOSFET
Datasheet download datasheet NCE40H12K Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCE40H12K N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE40H12 N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE40H12I N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE40H19 NCE N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor
NCE40H20 N-Channel Enhancement Mode Power MOSFET NCE Power Semiconductor

Other Datasheets by VBsemi

Part Number Description
NCE4060K N-Channel 40V MOSFET
NCE4614 Dual-Channel MOSFET
NCE0103 N-Channel 100V MOSFET
NCE0157A2 N-Channel Power MOSFET
NCE01H16 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

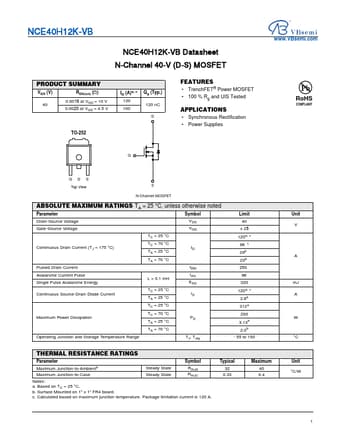

NCE40H12K-VB NCE40H12K-VB Datasheet N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.0016 at VGS = 10 V 0.0020 at VGS = 4.5 V ID (A)a, c 120 100 Qg (Typ.) 120 nC D TO-252 FEATURES • TrenchFET® Power MOSFET • 100 % Rg and UIS Tested APPLICATIONS • Synchronous Rectification • Power Supplies www.VBsemi.com RoHS COMPLIANT G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C ID TA = 70 °C Pulsed Drain Current IDM Avalanche Current Pulse Single Pulse Avalanche Energy L = 0.
