L530NL - N-Channel 100V MOSFET

L530NL Description

L530NL-VB L530NL-VB Datasheet N-Channel 100-V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0085 at VGS = 10 V 100 0..

L530NL Features

* TrenchFET® Power MOSFET
* 175 °C Maximum Junction Temperature
* Compliant to RoHS Directive 2002/95/EC TO-262 SS D G Top View D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Sou

📥 Download Datasheet

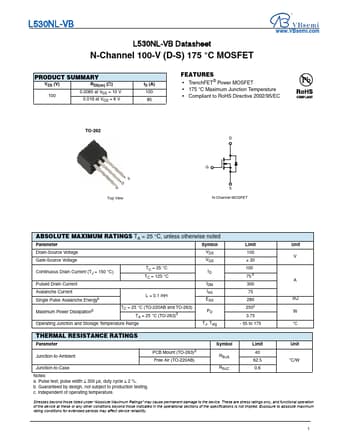

Preview of L530NL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
L530NL
Manufacturer
VBsemi
File Size
264.86 KB
Datasheet
L530NL-VBsemi.pdf
Description
N-Channel 100V MOSFET
