K2231 N-Channel 60V MOSFET

K2231 Description

K2231-VB K2231-VB Datasheet N-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 60 RDS(on) () Max.0.073 at VGS = 10 V 0.085 at V.

K2231 Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

K2231 Applications

* DC/DC Converters
* DC/AC Inverters
* Motor Drives D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (t = 300 µs) Aval

📥 Download Datasheet

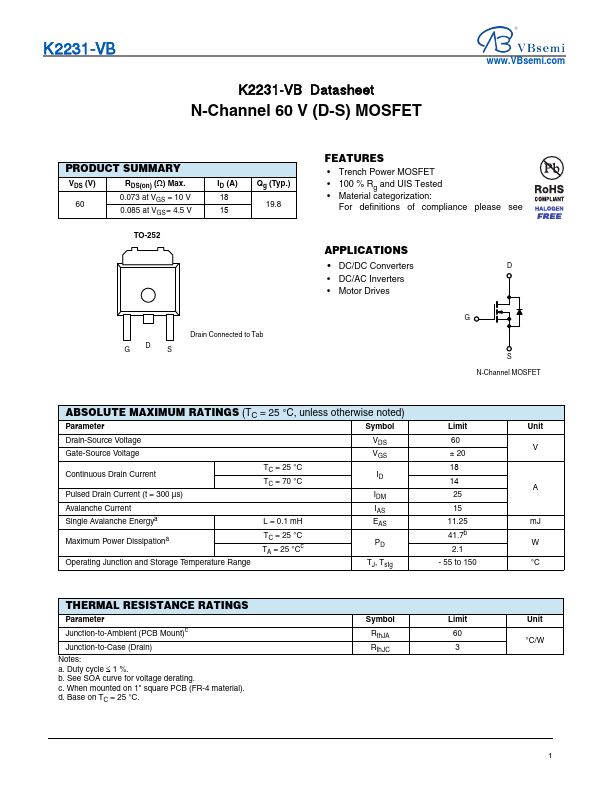

Preview of K2231 PDF

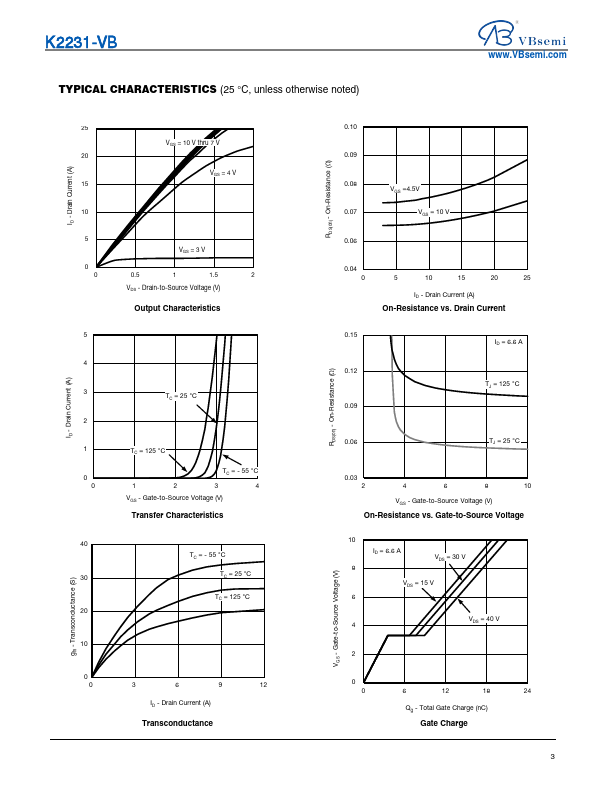

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K2231
Manufacturer
VBsemi
File Size
263.96 KB
Datasheet
K2231-VBsemi.pdf
Description
N-Channel 60V MOSFET
