IRLR9343TRPBF P-Channel MOSFET

IRLR9343TRPBF Description

IRLR9343TRPBF www.VBsemi.com IRLR9343TRPBF P-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 60 0.061 at V GS = - 10 V 0.072 a.

IRLR9343TRPBF Features

* TrenchFET® Power MOSFET

IRLR9343TRPBF Applications

* Load Switch TO-252 S G GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20 V Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 100 °C ID - 30 - 25 Pulsed Drain Current I

📥 Download Datasheet

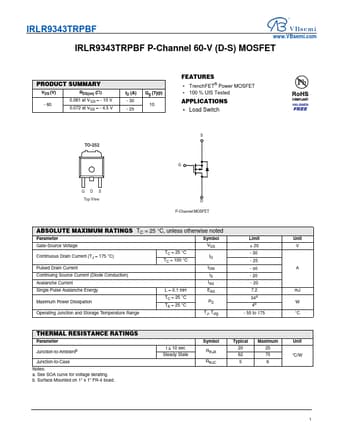

Preview of IRLR9343TRPBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRLR9343TRPBF
Manufacturer
VBsemi
File Size
283.00 KB
Datasheet
IRLR9343TRPBF-VBsemi.pdf
Description
P-Channel MOSFET
