FDC6306P - Dual P-Channel 20V MOSFET

Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • TrenchFET® Power MOSFET.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

Datasheet Details

Part number FDC6306P
Manufacturer VBsemi
File Size 350.21 KB
Description Dual P-Channel 20V MOSFET
Datasheet download datasheet FDC6306P Datasheet

📁 Similar Datasheet

  • FDC6306P - Dual P-Channel 2.5V Specified PowerTrench MOSFET (Fairchild Semiconductor)
  • FDC6306P - P-Channel MOSFET (onsemi)
  • FDC6301N - Dual N-Channel / Digital FET (Fairchild Semiconductor)
  • FDC6301N - Dual N-Channel Digital FET (ON Semiconductor)
  • FDC6302P - Digital FET/ Dual P-Channel (Fairchild Semiconductor)
  • FDC6302P - Dual P-Channel MOSFET (ON Semiconductor)
  • FDC6303N - Dual N-Channel Digital FET (Fairchild Semiconductor)
  • FDC6303N - Dual N-Channel Digital FET (onsemi)
  • FDC6304P - Digital FET/ Dual P-Channel (Fairchild Semiconductor)
  • FDC6304P - Dual P-Channel MOSFET (ON Semiconductor)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text

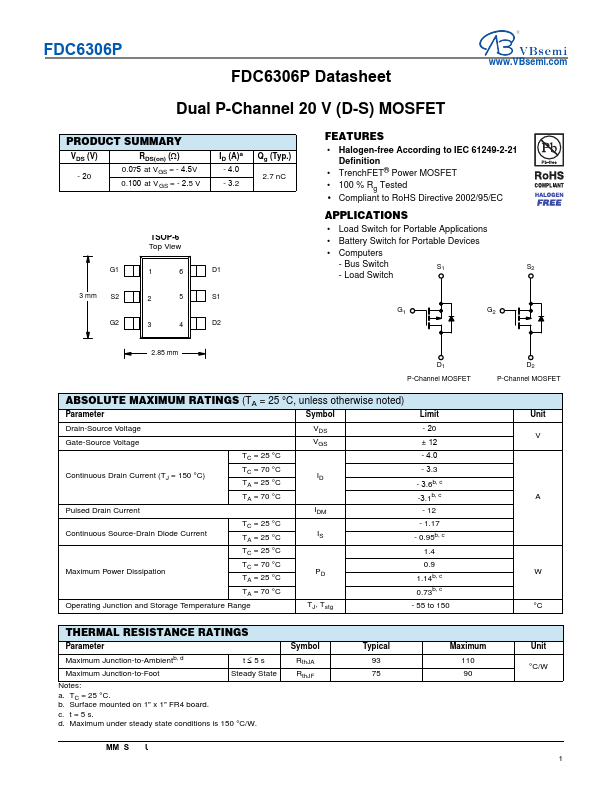

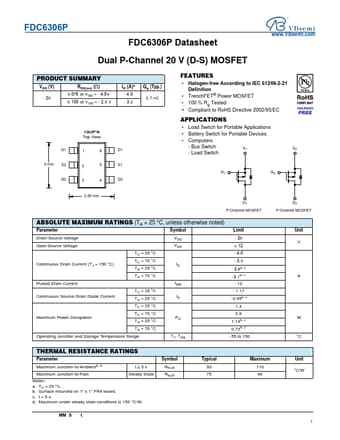

FDC6306P FDC6306P Datasheet www.VBsemi.com Dual P-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) - 20 RDS(on) () 0.075 at VGS = - 4.5V 0.100 at VGS = - 2.5 V ID (A)a - 4.0 - 3.2 Qg (Typ.) 2.7 nC TSOP-6 Top View G1 1 6 D1 3 mm S2 2 5 S1 G2 3 4 D2 FEATURES • Halogen-free According to IEC 61249-2-21 Definition • TrenchFET® Power MOSFET • 100 % Rg Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • Load Switch for Portable Applications • Battery Switch for Portable Devices • Computers - Bus Switch S1 S2 - Load Switch G1 G2 2.
