F7704G - Dual P-Channel MOSFET

Datasheet Summary

Features

  • S.
  • Halogen-free.
  • TrenchFET® Power MOSFET.
  • 100 % UIS Tested.

📥 Download Datasheet

Datasheet preview – F7704G

Datasheet Details

Part number F7704G
Manufacturer VBsemi
File Size 292.77 KB
Description Dual P-Channel MOSFET
Datasheet download datasheet F7704G Datasheet
Additional preview pages of the F7704G datasheet.

📁 Similar Datasheet

  • F770D - Multiscanning Color Monitor TECHNICAL SERVICE MANUAL (Hyundai)
  • F7751 - IRF7751 (International Rectifier)
Other Datasheets by VBsemi
  • F7702 - P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

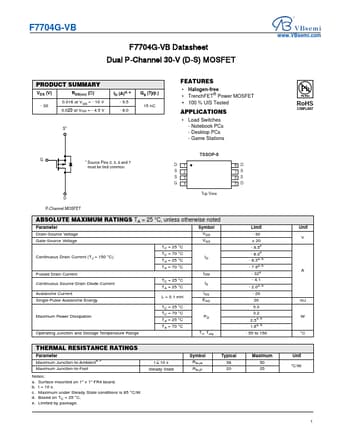

F7704G-VB F7704G-VB Datasheet Dual P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.016 at VGS = - 10 V 0.020 at VGS = - 4.5 V ID (A)d, e - 9.5 - 8.0 Qg (Typ.) 15 nC S* FEATURES • Halogen-free • TrenchFET® Power MOSFET • 100 % UIS Tested APPLICATIONS • Load Switches - Notebook PCs - Desktop PCs - Game Stations G * Source Pins 2, 3, 6 and 7 must be tied common.
Published: |
