F7304 - Dual P-Channel 30V MOSFET

Datasheet Summary

Features

  • Halogen-free.
  • Trench Power MOSFET.
  • 100 % UIS Tested.

📥 Download Datasheet

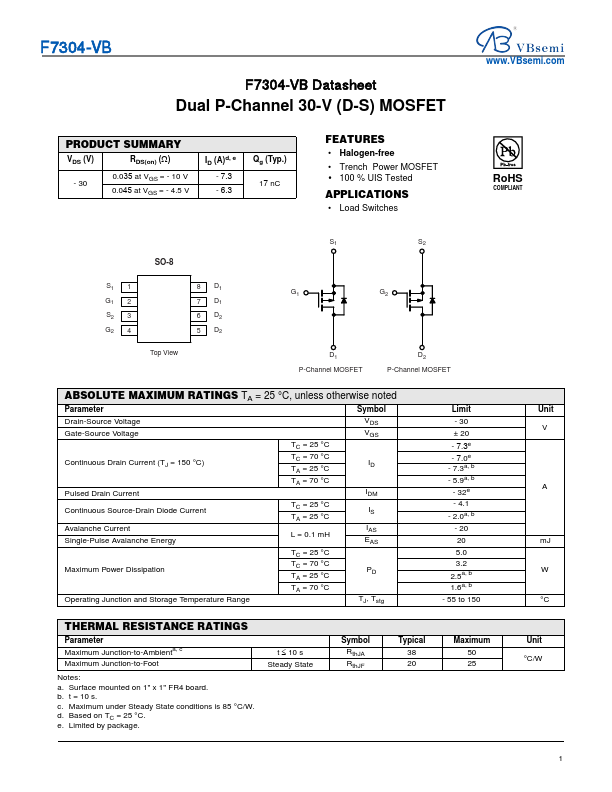

Datasheet preview – F7304

Datasheet Details

Part number F7304
Manufacturer VBsemi
File Size 283.35 KB
Description Dual P-Channel 30V MOSFET
Datasheet download datasheet F7304 Datasheet

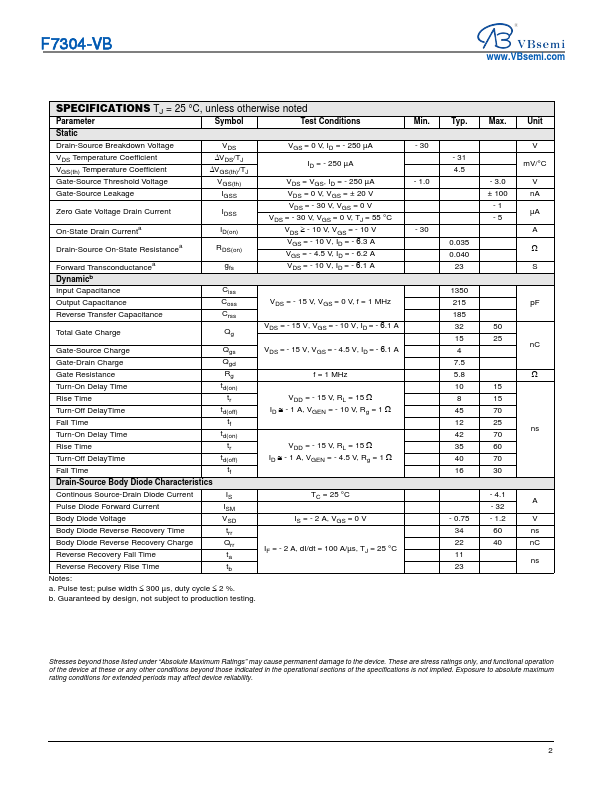

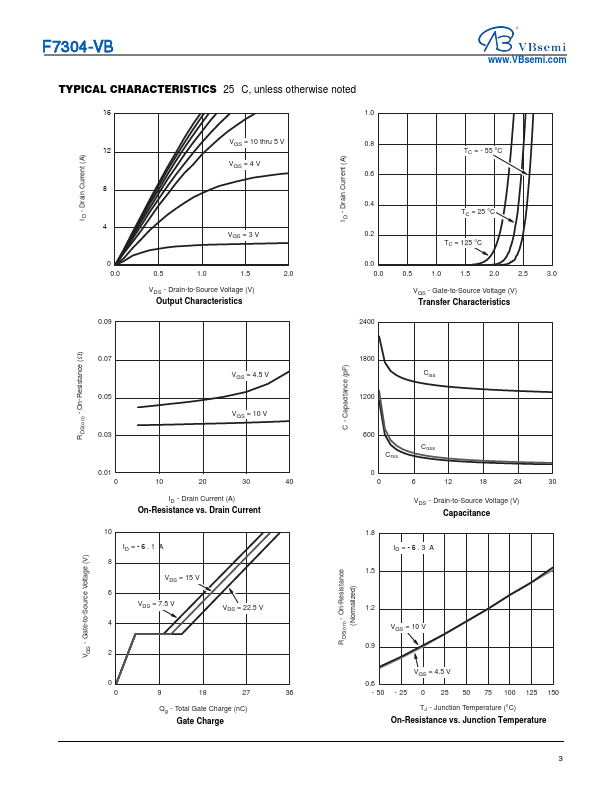

Additional preview pages of the F7304 datasheet.

📁 Similar Datasheet

  • F7313 - Power MOSFET (International Rectifier)
  • F7338 - IRF7338 (International Rectifier)
Other Datasheets by VBsemi
  • F7316 - Dual P-Channel MOSFET
  • F7342 - Dual P-Channel 60V MOSFET
  • F7343Q - N- and P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text
F7304-VB F7304-VB Datasheet Dual P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.035 at VGS = - 10 V 0.045 at VGS = - 4.5 V ID (A)d, e - 7.3 - 6.3 Qg (Typ.) 17 nC FEATURES • Halogen-free • Trench Power MOSFET • 100 % UIS Tested APPLICATIONS • Load Switches www.VBsemi.
