D454A N-Channel 40V MOSFET

D454A Description

D454A-VB D454A-VB Datasheet N-Channel 4 0-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 40 RDS(on) () 0.012 at VGS = 10 V 0.014 at VGS =.

D454A Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

D454A Applications

* D
* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C

📥 Download Datasheet

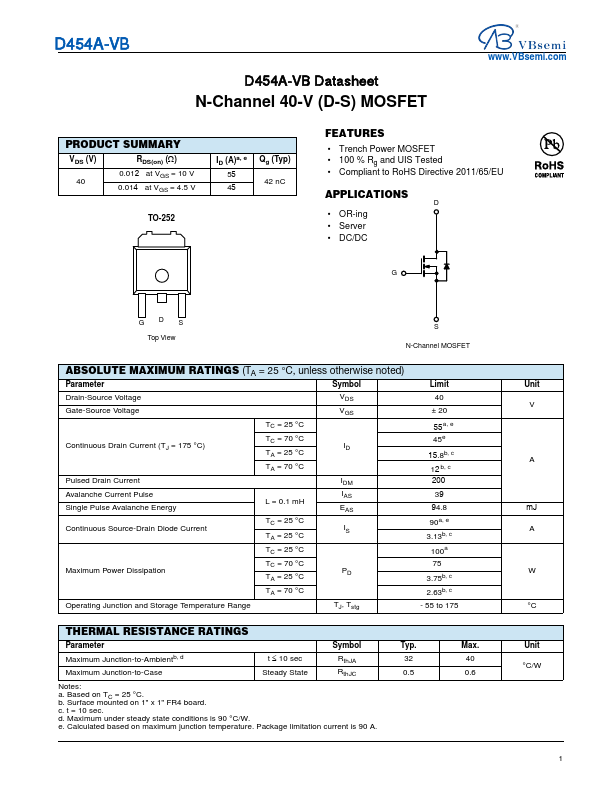

Preview of D454A PDF

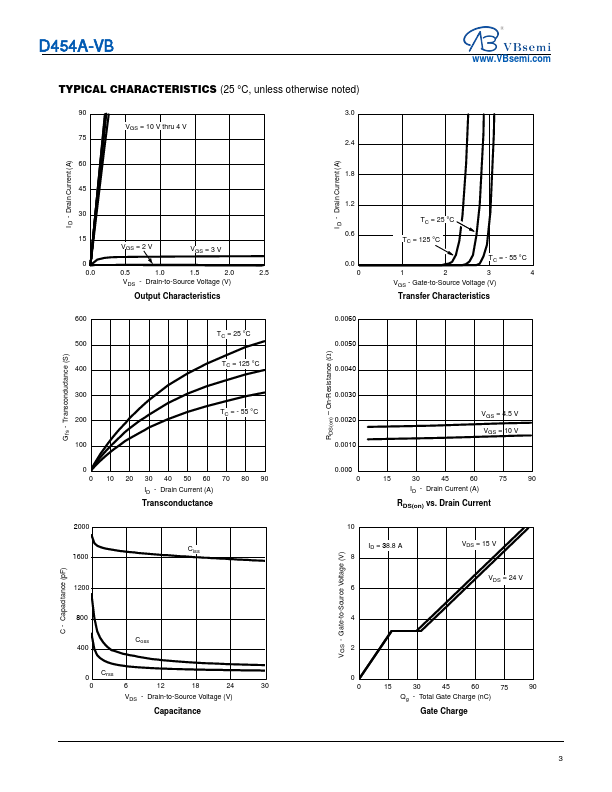

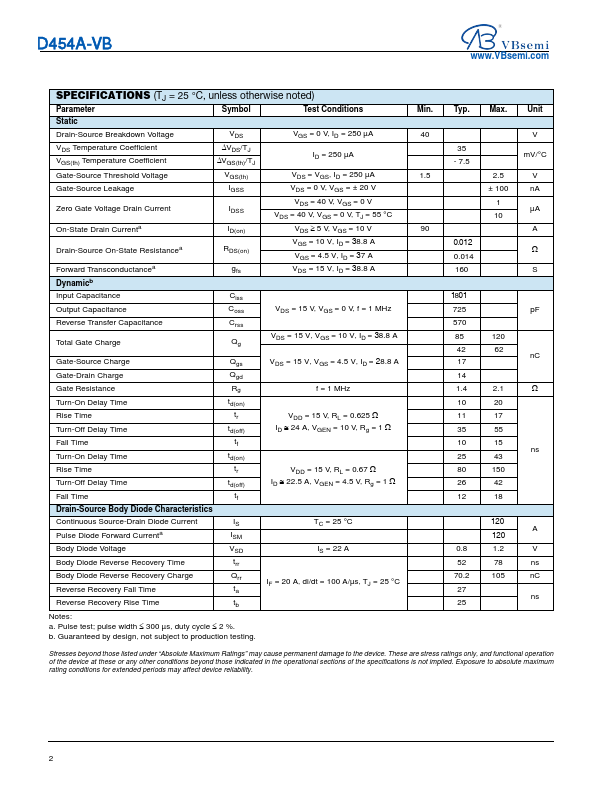

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
D454A
Manufacturer
VBsemi
File Size
279.66 KB
Datasheet
D454A-VBsemi.pdf
Description
N-Channel 40V MOSFET
