D45128841G5 - UPD45128841G5

Description

The µPD45128441, 45128841, 45128163 are high-speed 134,217,728-bit synchronous dynamic random-access memories, organized as 8,388,608 × 4 × 4, 4,194,304 × 8 × 4, 2,097,152 × 16 × 4 (word × bit × bank), respectively.

Features

  • Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge.
  • Pulsed interface.
  • Possible to assert random column address in every cycle.
  • Quad internal banks controlled by BA0(A13) and BA1(A12).
  • Byte control (×16) by LDQM and UDQM.
  • Programmable Wrap sequence (Sequential / Interleave).
  • Programmable burst length (1, 2, 4, 8 and full page).
  • Programmable /CAS latency (2 and 3).
  • Automatic precharge.

📥 Download Datasheet

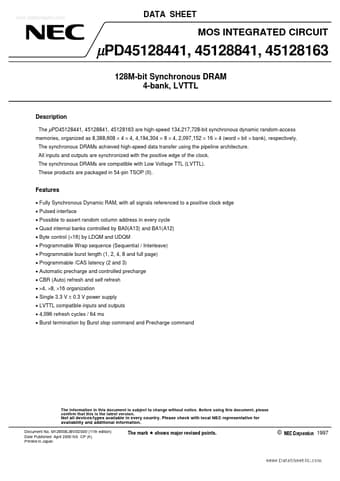

Datasheet preview – D45128841G5
