50N04 N-Channel MOSFET

50N04 Description

50N04 50N04 Datasheet N-Channel 40-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0050 at VGS = 10 V 40 0.0065 at VGS = 4.5 V ID (A)a, c .

50N04 Features

* TrenchFET® Power MOSFET

50N04 Applications

* Synchronous Rectification
* Power Supplies D www. VBsemi. com RoHS COMPLIANT G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ =

📥 Download Datasheet

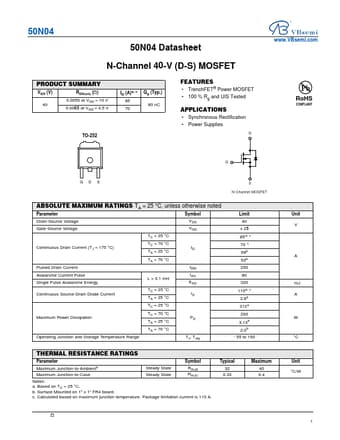

Preview of 50N04 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
50N04
Manufacturer
VBsemi
File Size
330.87 KB
Datasheet
50N04-VBsemi.pdf
Description
N-Channel MOSFET
